Moulded Panel Doors Melamine

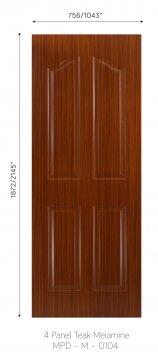

Technical Specification of 4 PANEL TEAK MELAMINE MPD – M – 0104

Tech Specs

30/32/35/40 or any custom thickness

Designs We stock the designs as per the designs provided in the brochure. We are also able
to produce any designs from Masonite range of products Against specific orders, If lead time
is given typically we require 120 days from firm order to additional designs

Width and height As per attached specification aside the technical drawings of each design

Width of internal stile 55++mm on all 4 sides with imported dried pinewood/finger jointed
pinewood to prevent doors from bending. Any type of locks, handles, fittings like viewing
panels, hooks etc. can be fixed just like on solid wood doors except for the recess areas.

GLUE : dynea PF thermosetting glue imported from Norway

Skins All skins are imported from Masonite

Core 1 TPB (Tubular particle board imported from Sauerland spanplatte Germany
2 Kiln dried pinewood imported from USA
3 Honeycomb (for light weight applications)

Finish : Wood texture primer finish suitable for staining or painting

Recess : Recess of the doors are hollow as per the IS standards. If required recess can be filled at extra cost

Certification : All Doors are made as per BIS standards. All our facilities have ISO
Certification

Masonite logo : All Moulded panel doors made by Fero will have a Masonite logo at the left bottom corner of the door

Quantity

quantity

Custom Sizes

Quantity

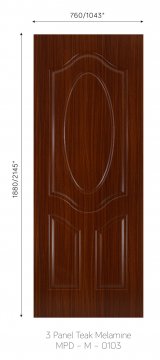

3 Panel Teak Melamine MPD – M – 0103

Technical Specification of 3 Panel Teak Melamine MPD – M – 0103

Tech Specs

30/32/35/40 or any custom thickness

Width and height As per attached specification aside the technical drawings of each design

GLUE : dynea PF thermosetting glue imported from Norway

Skins All skins are imported from Masonite

Core 1 TPB (Tubular particle board imported from Sauerland spanplatte Germany
2 Kiln dried pinewood imported from USA
3 Honeycomb (for light weight applications)

Finish : Wood texture primer finish suitable for staining or painting

Recess : Recess of the doors are hollow as per the IS standards. If required recess can be filled at extra cost

Certification : All Doors are made as per BIS standards. All our facilities have ISO
Certification

Masonite logo : All Moulded panel doors made by Fero will have a Masonite logo at the left bottom corner of the door

Quantity

quantity

Custom Sizes

Quantity

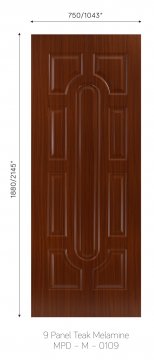

9 PANEL TEAK MELAMINE MPD – M – 0109

Technical Specification of 9 PANEL TEAK MELAMINE MPD – M – 0109

Tech Specs

30/32/35/40 or any custom thickness

Width and height As per attached specification aside the technical drawings of each design

GLUE : dynea PF thermosetting glue imported from Norway

Skins All skins are imported from Masonite

Core 1 TPB (Tubular particle board imported from Sauerland spanplatte Germany
2 Kiln dried pinewood imported from USA
3 Honeycomb (for light weight applications)

Finish : Wood texture primer finish suitable for staining or painting

Recess : Recess of the doors are hollow as per the IS standards. If required recess can be filled at extra cost

Certification : All Doors are made as per BIS standards. All our facilities have ISO
Certification

Masonite logo : All Moulded panel doors made by Fero will have a Masonite logo at the left bottom corner of the door

Quantity

quantity

Custom Sizes

Quantity

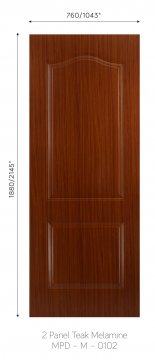

2 Panel Teak Melamine MPD – M – 0102

Technical Specification of 2 Panel Teak Melamine MPD – M – 0102

Tech Specs

30/32/35/40 or any custom thickness

Width and height As per attached specification aside the technical drawings of each design

GLUE : dynea PF thermosetting glue imported from Norway

Skins All skins are imported from Masonite

Core 1 TPB (Tubular particle board imported from Sauerland spanplatte Germany
2 Kiln dried pinewood imported from USA
3 Honeycomb (for light weight applications)

Finish : Wood texture primer finish suitable for staining or painting

Recess : Recess of the doors are hollow as per the IS standards. If required recess can be filled at extra cost

Certification : All Doors are made as per BIS standards. All our facilities have ISO
Certification

Masonite logo : All Moulded panel doors made by Fero will have a Masonite logo at the left bottom corner of the door

Quantity

quantity
